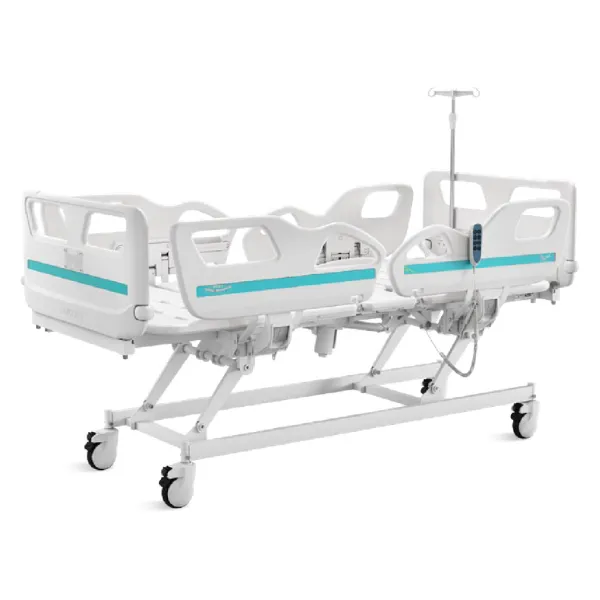

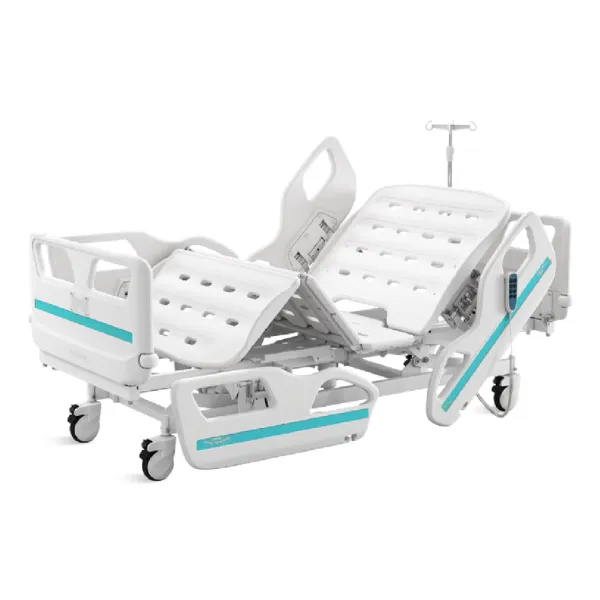

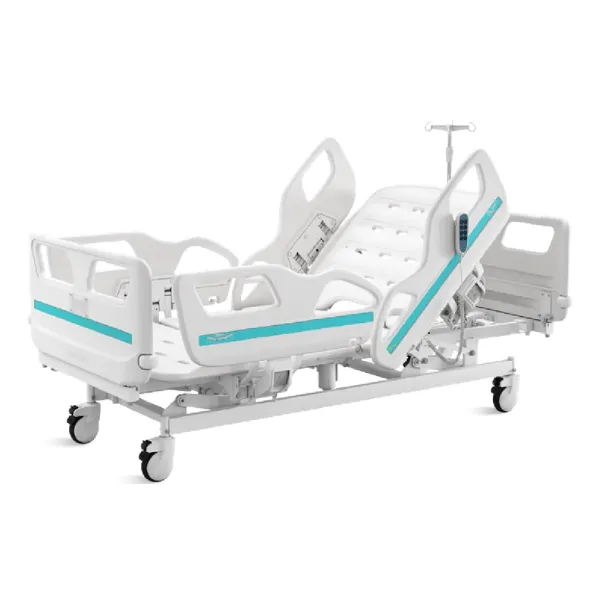

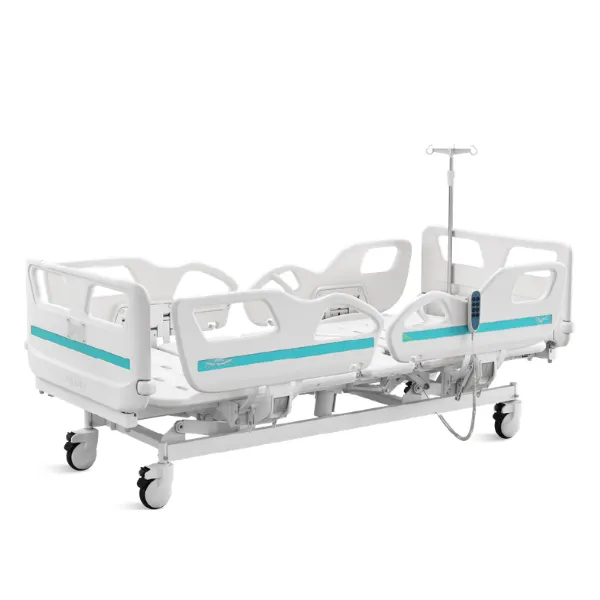

Electric 3-Function Nursing Bed V
Designed to support comfortable patient care and everyday nursing requirements, the Electric Nursing Bed – 3 Functions V provides powered adjustment of the backrest, knee rest and bed height for greater flexibility in positioning, treatment and patient handling.
With a 250 kg safe working load, adjustable height from 430 to 740 mm, extra-height PP side rails and removable head and foot boards with safety locks, the bed combines patient safety with practical access for caregivers. Individually braked castors allow the bed to be repositioned when required, while integrated IV pole sockets, drainage hooks and a handheld controller provide added convenience for routine clinical use.
Features
- 3-Function Bed
- Backrest Adjustment
- Knee Rest Adjustment
- Height Adjustment
- Removable Polypropylene mattress platform panels with integrated mattress retainer
- 4 pcs Polypropylene Side Rails with built-in angle indicator and drainage hook (Individually collapsible)
- Polypropylene Head and Foot Board with safety lock
- Wall bumper wheel at each corner – ∅65 mm x 4 corners
- Individually locked ∅125 mm castors
- 4 x IV Pole slots with 1 x 4-hook IV Pole
- 2 x Drainage Hooks
- 1 x Hand Control unit for adjustments
Specifications
| External Dimensions | 2085 x 1025 mm |
| Patient Surface | 1925 x 900 mm |
| Patient Platform Height | 430 to 740 mm |
| Backrest Adjustment | 0 to 75° (±10°) |
| Kneerest Adjustment | 0 to 48° (±10°) |
| Castors | ∅125 mm x 4 (Individual Lock) |
| Safe Working Load | 250 kg |
Note: Specifications subject to change without prior notice.
Accessories
 |  |  |

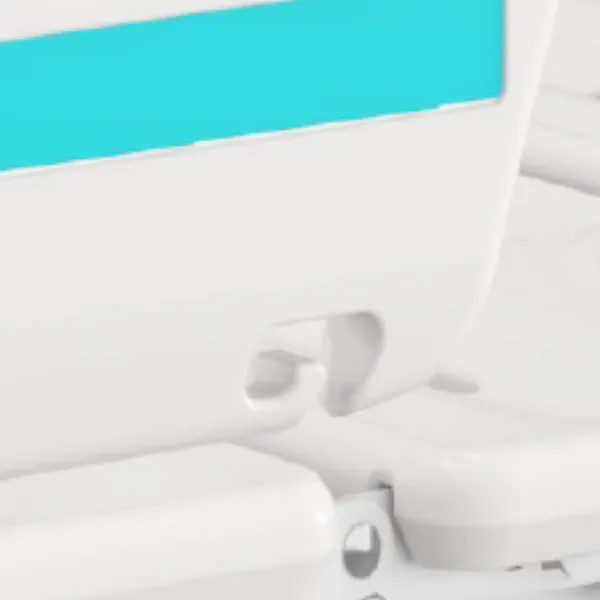

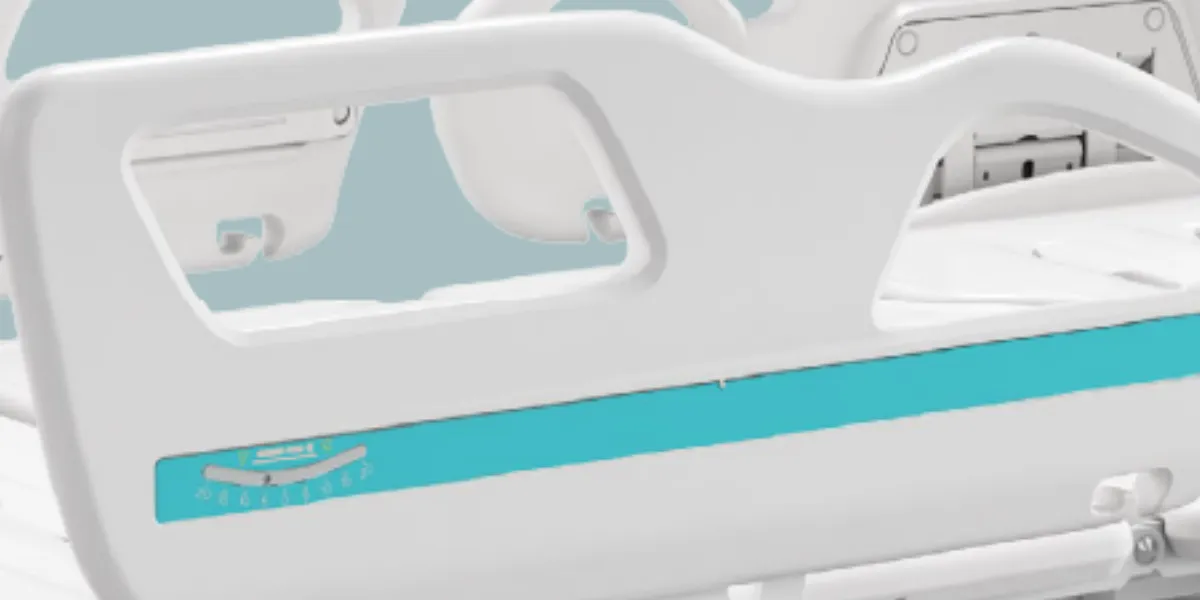

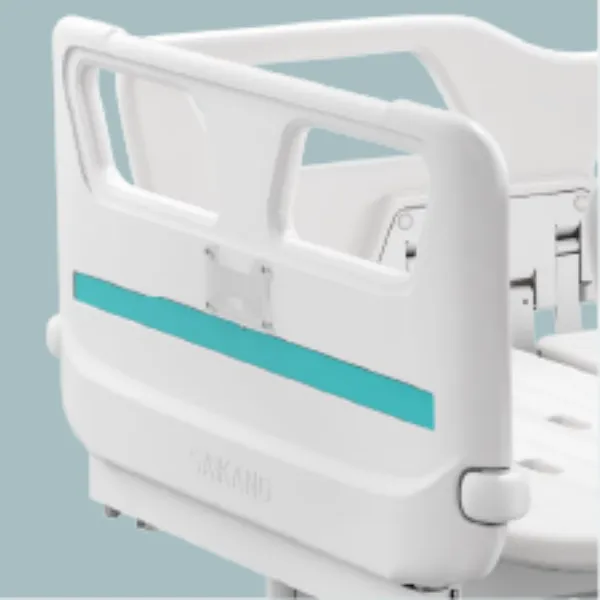

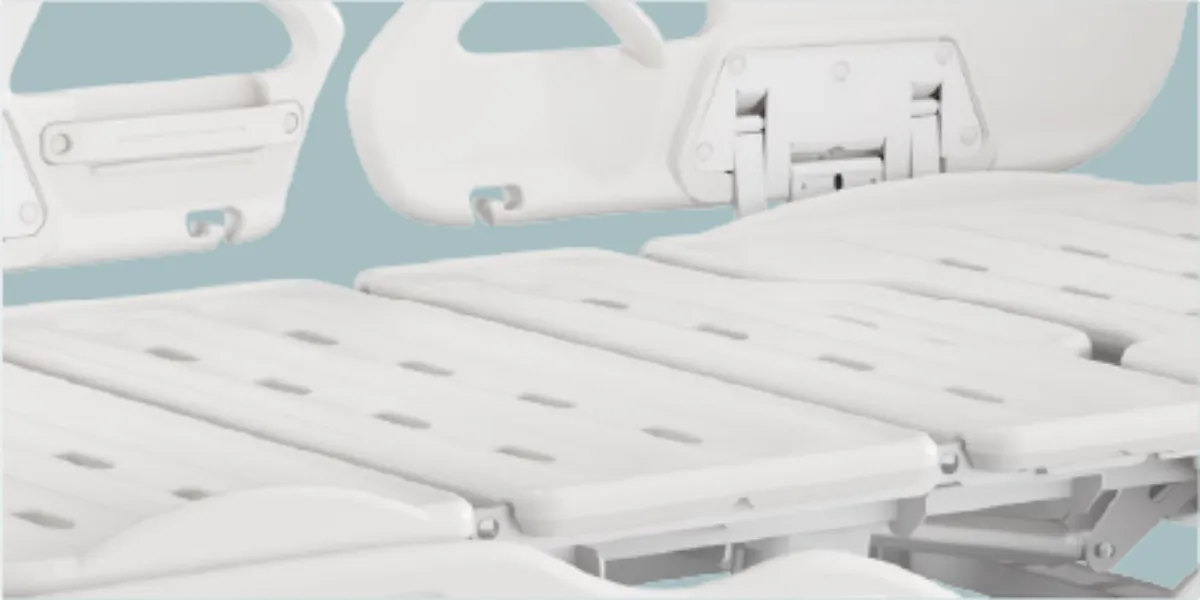

| PP Mattress platform w integrated mattress retainer | PP Side rail w integrated handles and angle indicator | PP Head and Foot board w wall bumper wheels |
 |  |  |  |  |

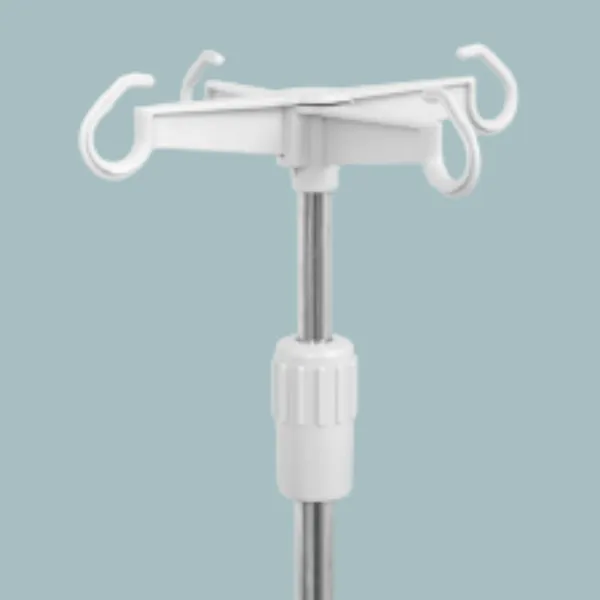

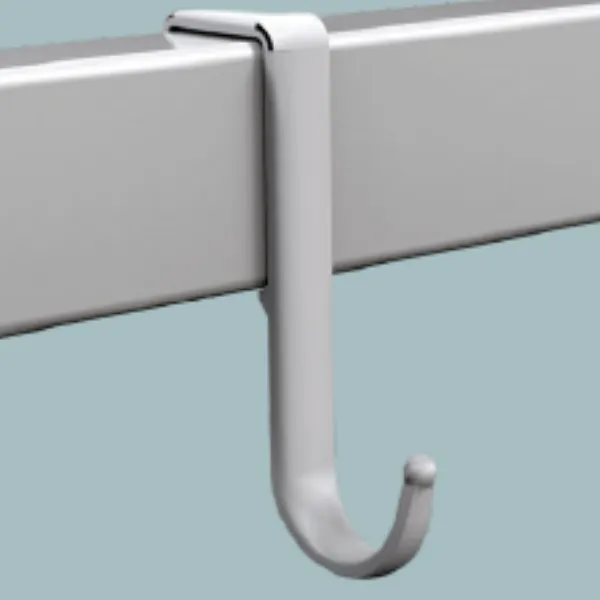

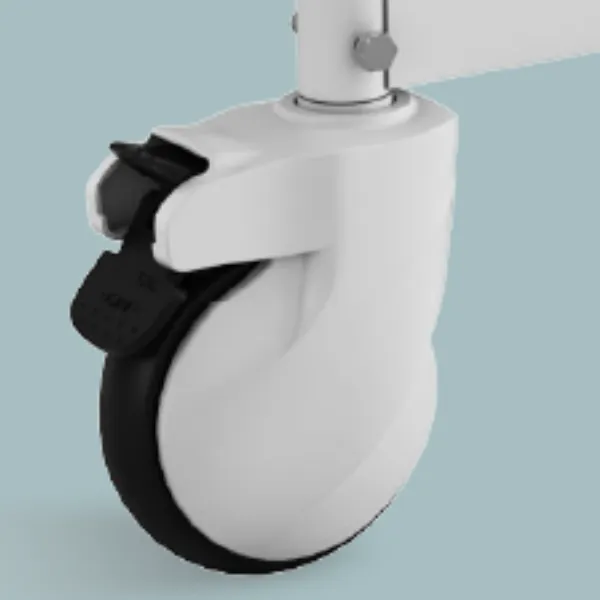

| ∅125 mm castor w individual brake | Drainage hook built-into side rail | Additional drainage hook | 4-hook IV pole | Patient Handset |
