ESC2 Eye Chair with Manual Base
Brand: Hausted
The ESC2EYEST-MB Eye Chair with Manual Base is a powered ophthalmology platform designed for precision and patient comfort. While retaining powered positioning functions for smooth adjustments during examinations and procedures, it features a simplified base with manual-locking castors. This configuration provides stable support and reliable mobility, making it well-suited for ophthalmic practices that require powered functionality with a simplified base design.
Features
- Low Profile Manual Base for Greater Clearance and minimal obstruction.

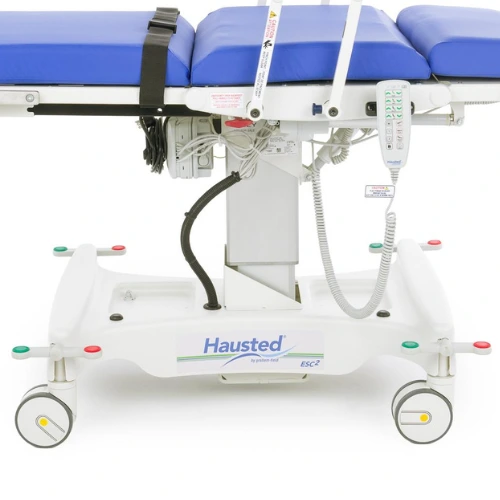

- Manual Castors with Colour-Coded Pedal Locks for Brake, Swivel (Neutral), and Directional Steering.
- Industry Leading Height Range – 510 mm to 1020 mm for Greater Procedure Flexibility
- 272 kg Weight Capacity for Your Larger Patients
- Wider Patient Surface for Enhanced Patient Comfort and Safety – 660 mm
- Two-position Footrest with Integrated Powered Leg Extension for Taller Patients

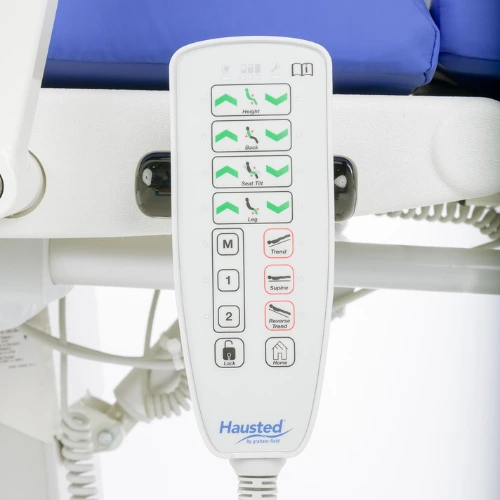

- Hand Pendant with Pre-Sets and 2 Memory Positions– Positioning at Your Fingertips
- Superior Surgeon Leg Clearance
- 0° – 15° Trendelenburg and 0° – 6° Reverse Trendelenburg
- Integrated Ergonomic Push Handles for Increased Staff Safety
- Counter Rotating Side Rails with Urethane Comfort Arm Rests
- Quick-Release Positioning
- Contoured, Multi-density Pad with Dura-Gel® Insert for Greater Patient Comfort
- Back-up Lithium Ion Battery for Longer Battery Life
- Accommodates 100-240V 50/60 Hz
- 3-inch (80 mm) Sectional mattress pad, Primastretch Fabric
Specifications
| ESC2EYEST-MB | |
| Overall Dimensions | L2108 x W813 x H508-1016 mm |
| Overall Patient Surface | L1905-2108 x W660 mm |
| Armrest Length | 470 mm |
| Armrest Height | 260 mm |
| Sectional Pad Thickness | 76 mm |
| Castors | Ø127 mm |
| Backrest Adjustment | 0-85° |
| Seat Tilt Adjustment | 0-15° |
| Trendelenburg | 15° |
| Reverse Trendelenburg | 6° |
| Power | 100-240 V ~ 50/60 Hz |
| Weight Capacity | 272 kg |
Note: Specifications subject to change without prior notice.
