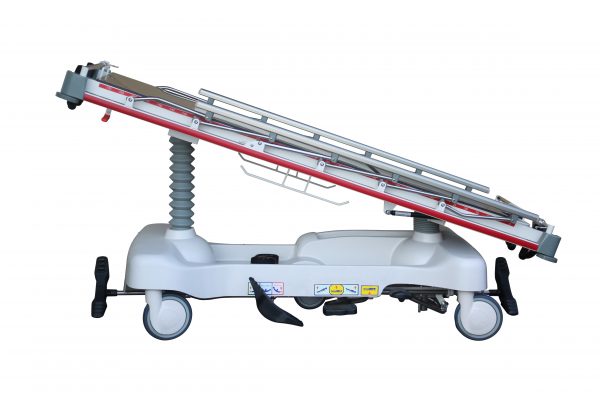

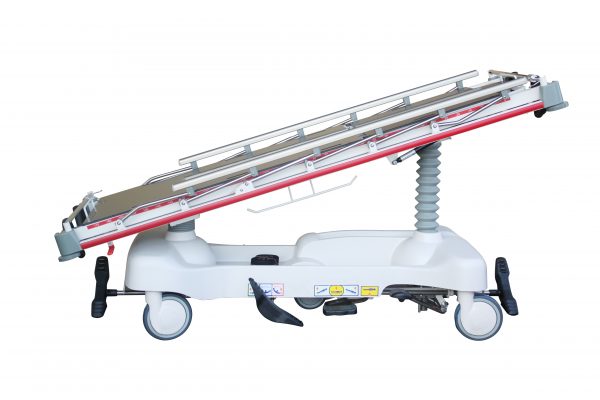

Hydraulic Transport & Treatment X-Ray Stretcher
Brand: Meditron
The hydraulic patient transport and treatment X-Ray stretcher is robust and reliable with consistent performance, ideal for transporting and treating patients in hospital, surgical or outpatient clinics. This unit offers X-ray capabilities with sliding cassette film holder from head to toe.
Benefits
- Backrest adjustment by gas lift assisted (0~90°)
- Leg rest elevation by manual hand crank (0~40°)
- Foot adjustment by manual ratchet
- Dual hydraulic hi-lo elevation operated by foot pedal on both sides
- Dual trendelenburg adjustment operated by foot pedal on both sides
- Central brake & directional steer pedal at head, foot, right and left of trolley
- Collapsible 3/4 length chromed finished safety side rails with spring loaded lock
- Foldable handles at head & foot end of bed
- Bakelite mattress base with restraint strap holders for easy cleaning purposes
- X-Ray translucent backrest with X-Ray cassette holder
- Sliding cassette film holder from head to toe
- ABS mattress base with restraint strap holders for easy cleaning purposes
- Seamless welded mattress cover
- Roller bumpers with protection cover on all corners of trolley
- Vertical oxygen tank holder (‘E’ size)
- Mounted stainless steel IV pole with double hook x 2
- Drainage bag holder bards on both sides of bed
- Utility tray
Specifications
Material Mild Steel Framework
Finishing Epoxy Powder Coating
Dimension 2130 (L) x 800 (W) x 560 – 900 (H) mm
Mattress Thickness 75mm
Side Rail 1400 (L) x 340 (H) mm
Trendelenburg 18° using foot pedal on both sides
Reverse Trendelenburg 18° using foot pedal on both sides
Castor Diameter 200mm (central lock mechanism)
Maximum Load Capacity < 220kg
Note: Specifications subject to change without prior notice
