Automated Lateral Tilt System

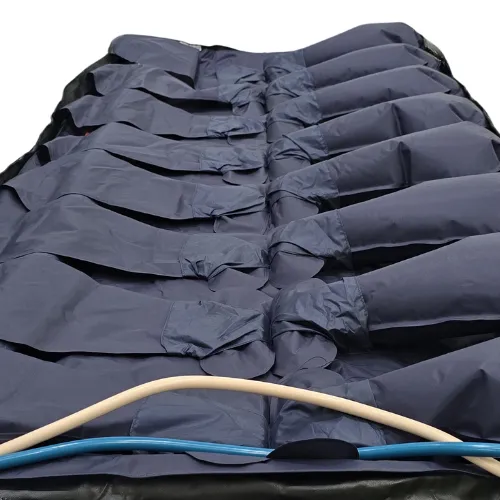

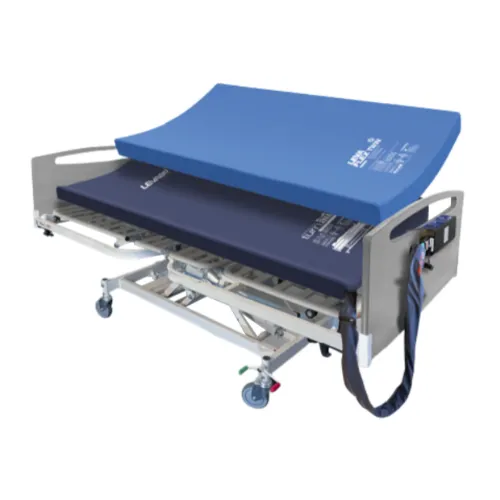

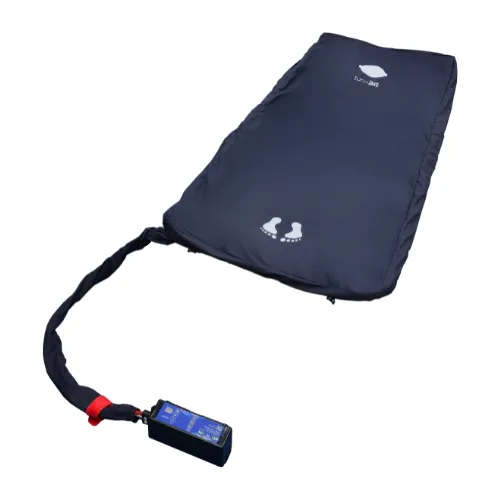

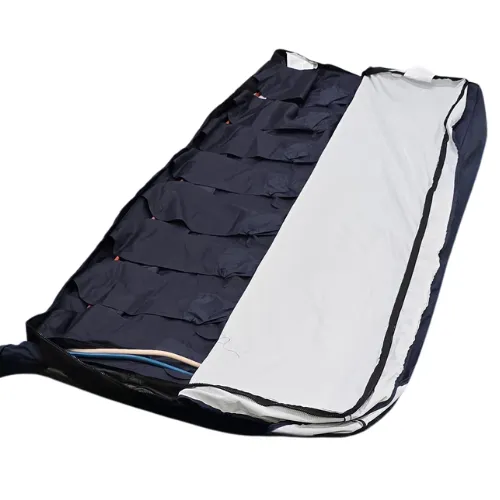

The Turn All Automated Lateral Tilt System is an under-mattress solution designed to support the prevention and management of pressure ulcers in hospital and long-term care settings. Installed beneath a standard mattress, the system automatically and gently tilts the mattress—and the patient—up to 30 degrees to the left and right, alternating at programmed intervals. Using integrated inflatable air chambers, each repositioning cycle occurs gradually over 7 to 14 minutes, creating a smooth, natural motion that promotes pressure redistribution while maintaining patient comfort and stability.

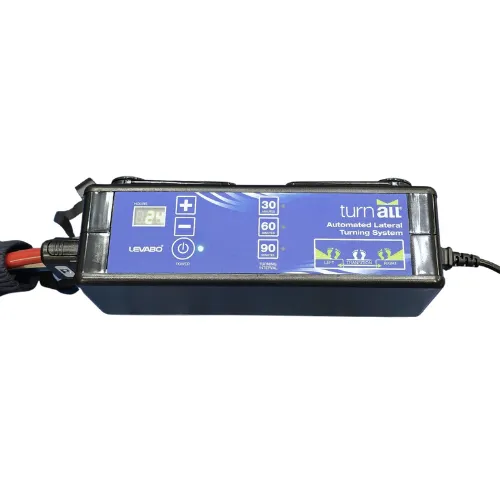

Engineered for very quiet operation, the system runs unobtrusively without disrupting patient rest, making it suitable for continuous day or night use. Care teams can customize therapy by selecting alternating intervals of 30, 60, or 90 minutes and setting a defined operating duration to match clinical needs. By automating lateral turning, the system helps improve consistency of care, reduce manual handling demands, and enhance patient comfort and dignity.
Features
- Effective pressure redistribution for the prevention and treatment of pressure injuries and ulcers.
- Gentle, comfortable repositioning that supports rest and does not interrupt normal sleep.
- Very quiet operation suitable for continuous day or night use.
- Safe and controlled turning of bariatric and heavy patients, reducing physical strain and injury risk for caregivers.
- Patient remains securely supported on their back, providing stability, reassurance, and full clinical access.
- Smooth, low-shear positioning with supportive counter-lift to reduce friction and discomfort, even for patients in pain.
- Improves microclimate, blood circulation, and overall skin integrity.
- Saves staff time, allowing more focus on direct patient care.
- Robust, durable, and reliable design for long-term clinical use.
- Compatible with most care beds featuring a removable mattress.

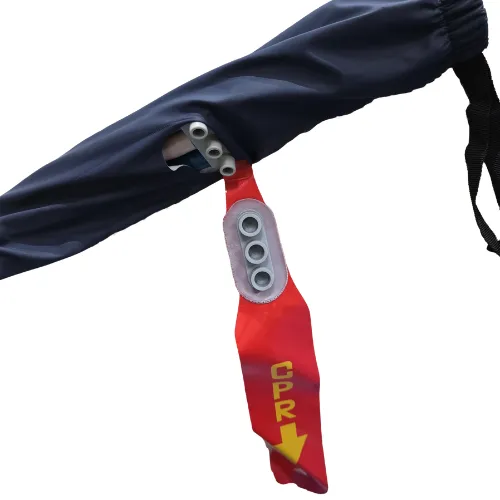

- Hosing has a release strap for faster manual deflation for emergency CPR.
Specifications
| Overall Dimensions | |
| – Cover | L2000 x W850 x H150mm |
| – Lifting Mattress | L2000 x W850mm |
| – Pump | L270 x W80 x H135mm |
| Product Weight | |
| – Pump | 1.5 kg |
| – Mattress w Cover | 4.0 kg |
| Lifting Angle | 30° (Automatic) |
| 0 -to 30° (Manual) | |
| Power Input | 240V 50Hz / 60Hz |
| Power Consumption | Max. 12W |
| Fuse | T500mA L250V |
Note: Specifications subject to change without prior notice.
