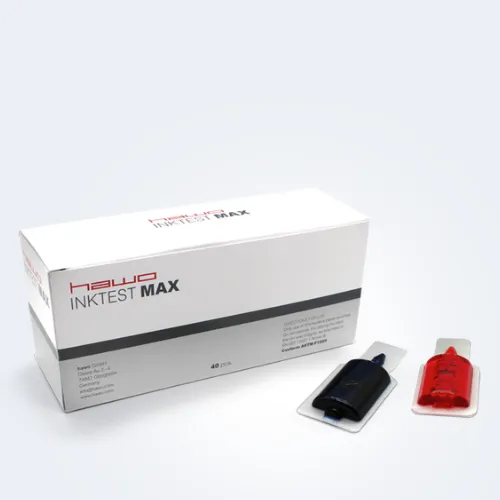

InkTest MAX Seal Seam Integrity Test
Brand: Hawo
The InkTest MAX is a new generation of ink tests for the routine testing of sealing seams as per ISO 11607-1 and ASTM F1929-23. The InkTest MAX (blue) is suitable for film and paper packaging, and InkTest MAX PLUS (red) is suitable for Tyvek®, PP fleece, PP non-woven and other polyolefin materials.
Packing: 40 cartridges per box
Benefits
- Break the cartridge, and the ink distributes rapidly across all 4 sealing seams simultaneously, testing all 4 sides to verify integrity instead of testing each seam side individually.
- Brightly colored liquids are easy to read, ensuring any leak or breach in the seal are detected instantly.
- No need for additional auxiliary equipment (e.g. pipettes).
- No risk of testing liquid to drip or transfer onto other objects and surfaces (e.g. clothing, skin).
Variants
| InkTest MAX | InkTest MAX PLUS | |
| Color | Blue | Red |
| Packing per unit | 40 cartridges | 40 cartridges |
| Cartridge | 4ml | 4ml |
| Recommended Testing | ||
| Film & Paper (EN 868-3) | × | |
| PP Fleece | × | |
| PP Non Woven | × | |
| Tyvek® | × | |
| Uncoated Polyolefin (EN 868-9) | × |
All sealable bags and pouches are compliant with EN ISO 11607-1 / EN 868-5.
Note: Specifications subject to change without prior notice.
Instructions for Use
 |  |  | ||

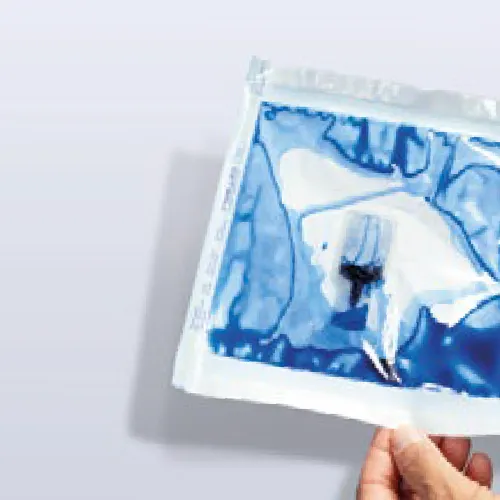

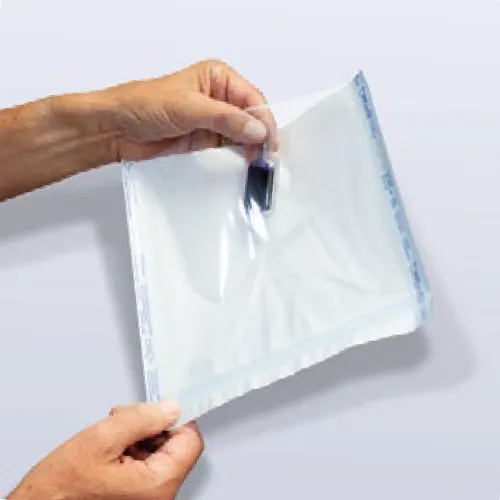

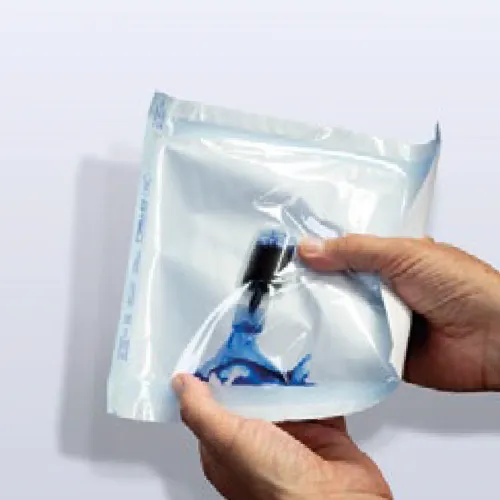

| 1. Insert 1 disposable cartridge into the pouch to be sealed. | 2. Once the package is sealed with a cartridge inside, fold the lid to break the cartridge and spill the liquid. | 3. When the cartridge is broken, the liquid rapidly distributes throughout the sealed pouch. The bright colored liquid will seep into any breach of the seal, making it easy to detect. |
