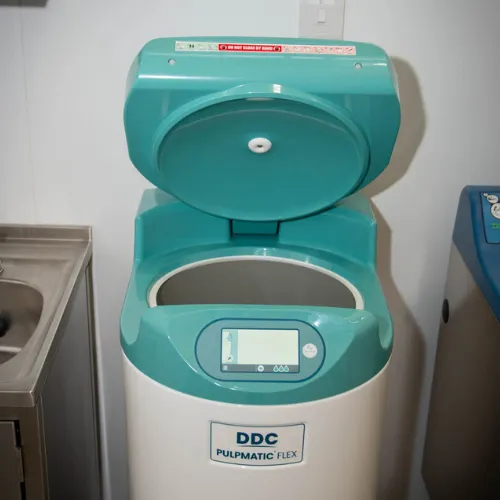

Pulpmatic Flex Macerator
Brand: DDC Dolphin
The Pulpmatic® Flex is an intelligent medical pulp macerator designed to improve hygiene, enhance sustainability, and streamline waste disposal in healthcare environments. Featuring a user-friendly 5″ touchscreen interface with real-time machine status and cycle progress updates, it simplifies day-to-day operation. Its patented ClearSense® auto-detection technology optimizes each maceration cycle by using only the necessary water and energy, helping reduce utility consumption and support environmental goals without compromising performance.
Features
Benefits
- Hands-free operation, integrated disinfection, and antimicrobial surfaces help minimize cross-contamination risks and support infection prevention protocols. Reduce staff exposure to potentially contaminated waste products.
- Fast cycle times and the ability to process up to 4 pulp items per cycle reduce waiting times and improve workflow efficiency in busy wards and care environments.
- Uses significantly less water and energy than conventional macerators, helping facilities reduce their environmental footprint and contribute towards sustainability and carbon reduction targets.
- ClearSense® technology automatically optimizes each cycle, using only the water and energy required. This helps lower utility bills and reduce the total cost of ownership.
Features
- Large capacity for disposing 4 medical pulps per cycle, suitable for busy sluice rooms in high usage areas.
- Dual chambers stop non-maceratable items reaching the drain and help prevent costly disruptions.
- ClearSense® technology automatically optimizes each cycle, using only the water and energy required for faster run-cycles (minimum: 55 second cycle).
- Completely hands-free, no touch operation reduces the risk of cross infections spreading to clinicians and patients.
- 5″ touchscreen displays status updates and on-screen prompts to adjust any settings to the operation cycle.
- Built-in audio guidance reinforces correct operation of the machine.
- Continuous, open-flow process output of waste to drain ensuring thorough removal of waste.
- High-quality antimicrobial coatings with smooth crevice-free surfaces, stopping the growth of harmful bacteria.
- Various start options to suit each facility’s requirements, ranging from self to auto start.
- Pre & post maceration self-cleaning flush limits the residual build up within the waste pipe network and prevent blockages.
Specifications
| General | |
| Dimensions -Lid Closed (W x D x H): | 450 x 605 x 1035 |
| Weight (Machine Only): | 70 kg (Dry) |
| Capacity: | 4 pcs of Medical Pulp |
| Operation Cycle Time: | min. 55 seconds |
| Decibel Rating: | < 70 dba |
| Interface Display | 5″ Touchscreen |
| Disinfection | |
| Detergent: | neuDolphin EcoCleanse Detergent |
| Disinfectant Bottle Volume (external): | 5 L |
| Disinfectant Dosing (per cycle): | min. 4 ml |
| Anti-Microbial Surface: | Biomaster Certified |
| Electrical | |
| AC Voltage: | 230 V / 50 Hz |
| Rated Power Input: | 0.8 kW |
| Electrical Consumption per Cycle: | 0.007 kWh |
| Motor Power: | 0.75 kW |
| Water Pump Power: | 0.21 kW |
| Water | |
| Water Pressure: | Cold water supply pressure 1 to 6 Bar |
| Water Tank Capacity: | 17 L |
| Water Consumption per cycle: | From 10 L |
| Discharge Pipe: | Ø50 mm ID |
| Waste Height: | 195 mm to 235 mm |
| System | |
| Self-Cleansing: | Automatic |
| Pulp discharge size: | Average Ø4 mm (Anti-choke) |
| Lid default position: | Closed (Automatic) |
Note: Specifications subject to change without notice.
