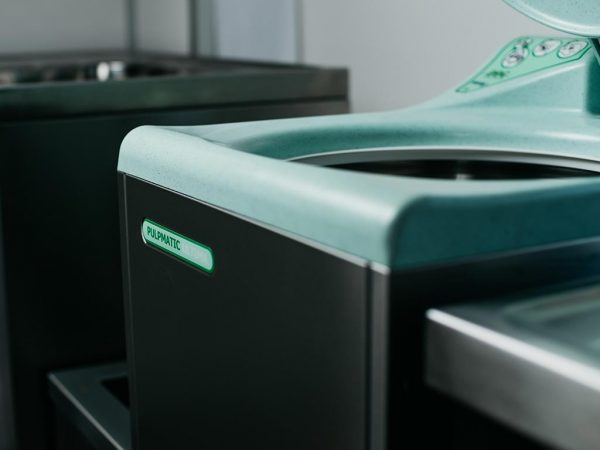

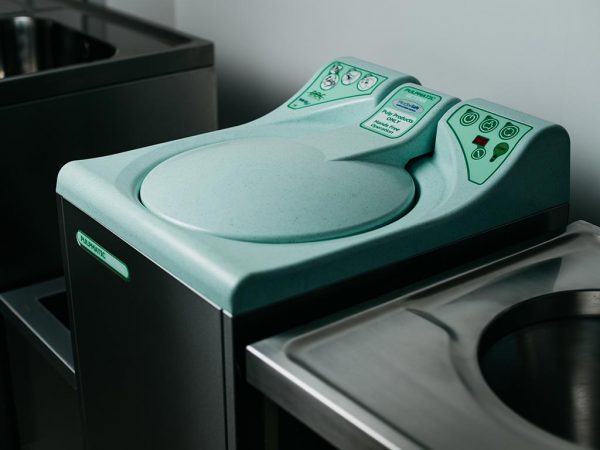

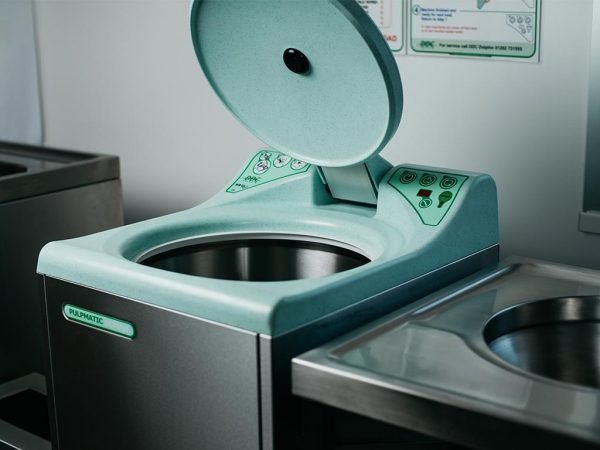

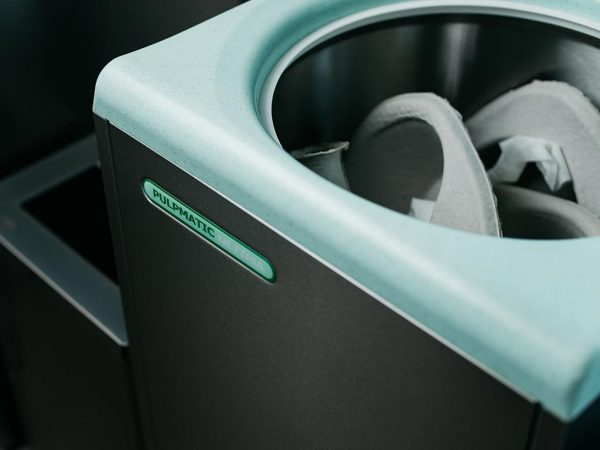

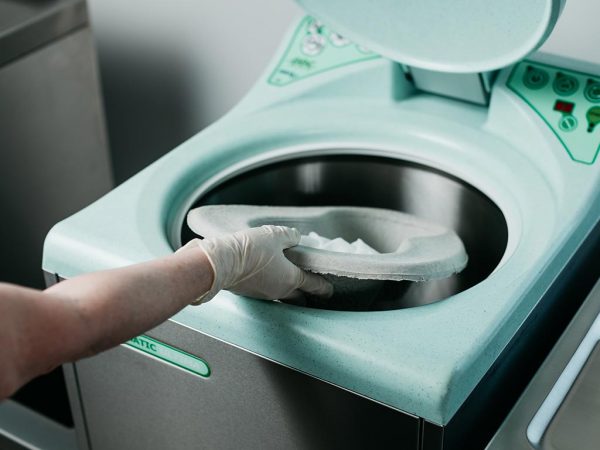

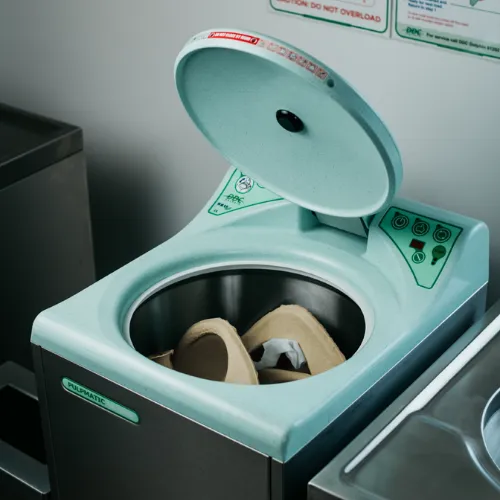

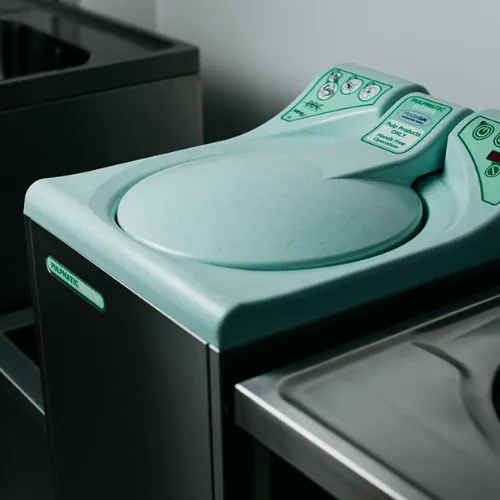

Pulpmatic Ultima Macerator
Brand: DDC Dolphin
The Pulpmatic Ultima is a large capacity medical pulp macerator, suitable for busy hospital wards and care homes, capable of disposing 4 to 8 medical pulps per cycle.
The unique 9 bladed macerator technology allows for a rapid disposal cycle of 120 seconds, without compromising on efficiency, water usage or noise levels.
Features
Benefits
- Reduces cross contamination of infectious diseases and minimizes the risk of ward outbreaks, keeping staff and patients safe.
- Saves clinicians’ time and increases productivity by reducing the need for cleaning of reusable items.
- Exceptionally economical, using little water and energy to operate.
- Reduces hospital budget spend with low operating costs and prevents ward shutdowns due to infections.
Features
- Large capacity for disposing 4 to 8 medical pulps per cycle, suitable for busy sluice rooms in high usage areas.
- Rapid 120 seconds per cycle, saving clinicians time.

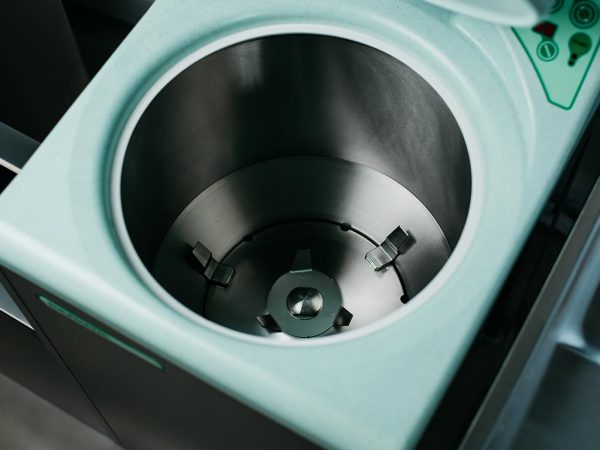

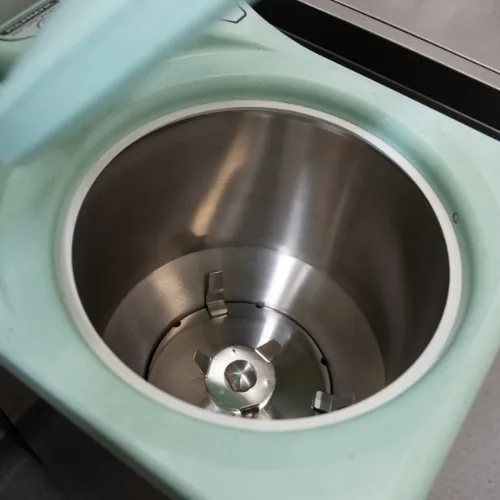

- Advanced 9 bladed technology which pulverizes medical pulps into tiny particles, ensuring all waste is eliminated and flows smoothly into soil discharge pipelines without blockages.
- Completely hands-free, no touch operation reduces the risk of cross infections spreading to clinicians and patients.
- Continuous, free flowing output of waste to drain ensuring thorough removal of waste.
- High quality antimicrobial coatings with smooth crevice-free surfaces, stopping the growth of harmful bacteria.
- Programmable automatic drain flushing prevents the build-up of stagnant water for low usage areas, reducing the possibility of Legionnaires’ disease.
- Various start options to suit each facility’s requirements, ranging from self to auto start.
- Pre & post maceration self-cleaning flush limits the residual build up within the waste pipe network and prevent blockages.
Specifications
| General | |
| Stainless Steel Grade: | 304 |
| Dimensions -Lid Closed (W x D x H): | 500 x 600 x 1042 ±3 mm |
| Weight (Machine Only): | 85 kg (Dry) |
| 108.5 kg (Wet) | |
| Capacity: | 4 pcs of Medical Pulp |
| Ingress Protections: | IP22 |
| Operation Cycle Time: | <120 seconds |
| Decibel Rating: | < 70 dba |
| Disinfection | |
| Detergent: | neuDolphin EcoCleanse Detergent |
| Disinfectant Bottle Volume (external): | 5 L |
| Disinfectant Dosing (per cycle): | 8 ml |
| MicrobeSafe Anti-Microbial Surface: | Top Lid Cover, Permanent |
| Electrical | |
| AC Voltage: | 230 V / 50 Hz with dedicated 13 A breaker |
| Circuit Protection: | 30 mA RCD, GFI, IEC60364 compliant |
| Rated Power Input: | 1.1 kW |
| Electrical Consumption per Cycle: | 0.025 kWh |
| Motor Power | 0.75 kW |
| Water | |
| Water Connection: | ¾” BSP male fitting required (washing machine hose) |
| Water Pressure: | Cold water supply pressure 1 to 6 Bar |
| Water Flow Rate (Min): | 12 L per minute at 1 Bar |
| Water Tank Capacity: | 26 L |
| Water Consumption per cycle: | 23 L |
| Discharge Pipe: | Ø50 mm ID (Connects to Ø100mm soil pipe) |
| Overflow Connection: | Ø22 mm |
| Waste Height: | 160 mm to 250 mm |
| System | |
| Self-Cleansing: | Automatic |
| Pulp discharge size: | Average Ø2 mm (Anti-choke) |
| Lid default position: | Closed (Automatic) |
Note: Specifications subject to change without notice.
Diagram
Outline Dimensions of Pulpmatic Ultima Macerator
Note: Specifications subject to change without notice.
