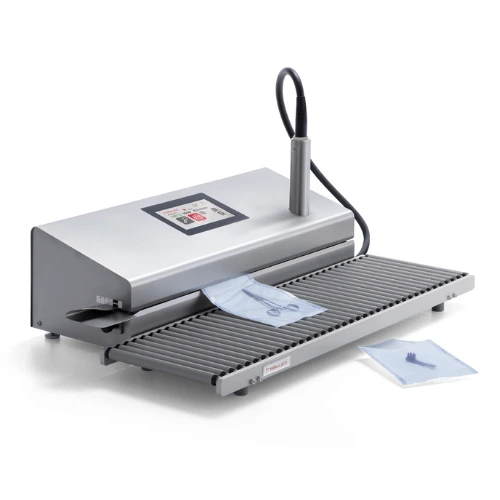

Rotary Sealer hm 5000 DC-VI PrintPak med
Brand: Hawo
The hm 5000 DC-VI PrintPak med is a UDI-ready rotary sealing system designed for the stringent demands of the medical and pharmaceutical sectors. It features an integrated inkjet print probe that prints matrix codes containing all UDI-relevant data directly onto the clear side of sterile barrier systems, ensuring precise device identification, enhanced traceability, and improved patient safety. Supporting flexible data input via keyboard, network, 2D scanner, RFID reader, and matrix reader, PrintPak med streamlines compliance with UDI labelling standards and safeguards against counterfeiting.
Features
Benefits
- Capable of high-quality printing on the clear side of sterile barrier packaging.
- Compatibility with various medical-grade sterile packaging; including Tyvek® and polyolefin packaging.
- Lower energy requirements and power consumption in accordance with hawo’s GreenTek® concept.
- 7″ TFT display with AppCtrl applications for intuitive and streamlined operations.
- TraceLog and DocLink enable batch tracking and retrievable records.
UDI Ready – Unique Product Identifier
The unique product identifier (UDI) by means of a numeric or alphanumeric code enables unique identification of medical devices on the market, facilitates their traceability, prevents plagiarism and thus improves overall patient safety.

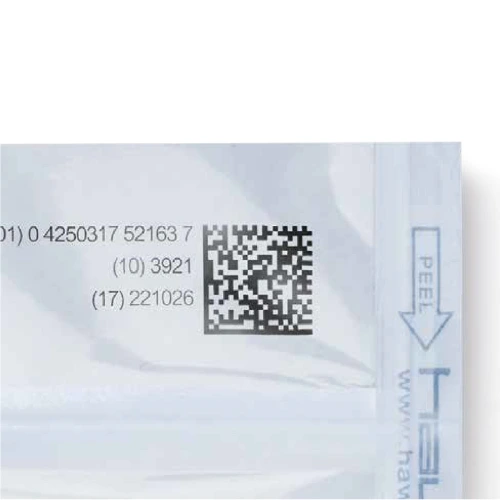

The PrintPak med rotary sealer with integrated InkJet print-probe combines all UDI-relevant data in a matrix code and prints it directly onto the clear side of the sterile barrier system.
InkJet – Flexible Printing

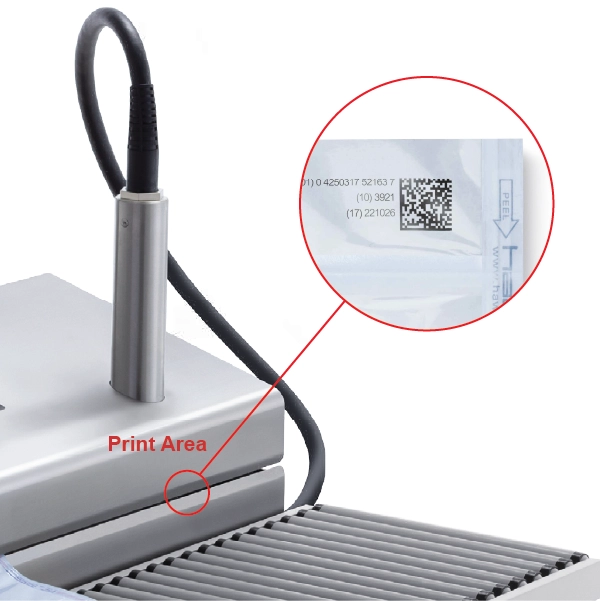

The integrated InkJet print probe ensures razor-sharp print image directly on the transparent side of the sterile barrier system. A fast-drying ink prevents smudging of the print image and ensures the permanent readability of the matrix code.
Recommended to adjust ink and print settings according to the material to be printed on.
AppCtrl® – Touch Screen
A 7″ TFT touch screen and an intelligent controller in connection with the AppCtrl applications allowing to call up device and programming functions, make operation and validation even more comfortable and easy. The main screen can be adapted individually by the user according to his needs. On top of this, the DC-VI PrintPak med is equipped with a HDMI port and can be connected to any commercially available monitor or TV.
DocLink® – Communication
Due to the innovative DocLink communication unit the hm 5000 DC-VI PrintPak med can easily be linked to batch documentation and tracking systems (testing required). It is equipped with four USB and one RS 232 interfaces. An additional Ethernet interface makes the hm 5000 DC-VI PrintPak med network-compatible.
TraceLog® – Digital Logbook
The hm 5000 DC-VI PrintPak med is equipped with the new hawo TraceLog technology. All actions are recorded and can be viewed if required. If the DataMatic function is activated via a connected USB stick, each action is automatically copied and can then be viewed in a spreadsheet program (e.g. Excel). All data can also be exported via the integrated Ethernet port.
ProTrack® – Process Tracking
ProTrack is an optional technology for the holistic monitoring of the sealing process over the entire sealing seam length – a technology for highest demands. For each sealing seam the temperature, contact pressure and speed (dwell time) are monitored and recorded on a USB stick. The innovative technology can record up to 1,000 measured values within one seam (additional USB stick required).
UniSeal – Universal Sealing System
The innovative rotary sealing system of the hm 5000 DC-VI PrintPak med is suitable for the process-safe closing of all common sealable, prefabricated sterile barrier systems and medical packaging as well as uncoated Tyvek® and polyolefin packaging. It is equipped with the UniSeal seam technology, which guarantees excellent sealing results for all compatible pouches and tubes. The UniSeal sealing seam has been especially developed for the processing of alumium laminate films and sealable PA/PE pouches and, due to its special structure, prevents air inclusions within the seam, which are typical for these materials. Modified seam structures are available on request.
GreenTek® – Sustainability
The hm 5000 DC-VI PrintPak med consistently counts on a resource-efficient design with a completely new type of sealing technology, which only needs a fraction of the energy required by similar devices. The heating works with a highly efficient 24V system which reduces the power consumption to a minimum. The stand-by function and automatic shut-down, when not in use, complete hawo’s GreenTek concept – without compromising the quality of the sealing results.
Specifications
| TECHNICAL DATA | |
| Validatable process | x |
| Microprocessor controlled | x |
| Display | 7″ TFT graphic colour |
| Input keyboard | touchscreen (external keyboard/mouse optional) |
| Integrated dot-matrix printer (for printing on the back of the SBS) | 24-dot matrix, single-lined, for special characters |
| Print height dot-matrix printer | 4mm |
| Integrated InkJet printer (for printer on the clear side of the SBS) | x |
| Print height InkJet printer | 12mm |
| RS 232 connection | x |
| USB connection | x (4x) |
| Ethernet connection | x |
| HDMI connection | x |
| Sealing speed (dwell) | 5 – 13m/min (monitored) |
| Sealing temperature | max. 210°C (monitored) |
| Contact pressure | 100N (factory setting/monitored) |
| Switch-off tolerance +/- 5°C (DIN 58953-7) | x |
| Seal distance from the material edge | 0 – 35mm |
| Seal seam width | 12mm +/- 0.5mm |
| Sealing system | UniSeal (knurled seam) |
| Mains connection | 100 – 240 V, 50/60 Hz |
| Power Consumption | 90W |
| Dimensions | L730 x W260 x H225mm |
| Weight | 25 kg |
| Housing | Stainless Steel |
| Cleanroom Environment | Recommended installation outside of clean room |
Note: Specifications subject to change without prior notice.
Accessories
| hawo Scanner | x |
| Label Printer | x |
| Roll Conveyor hm 500 RT | x |
| Tray hm 1000 T | x |
Seal Seam Test
Seal Check Seal check sheets for paper pouches (250 pcs per pack)
Seal Check HDPE Seal check sheets for HDPE pouches (250 pcs per pack)
Ink Test PRO Dye penetration test sachet for paper pouches (30 packs per box)
Ink Test PRO HDPE Dye penetration test sachet for HDPE pouches (30 packs per box)
