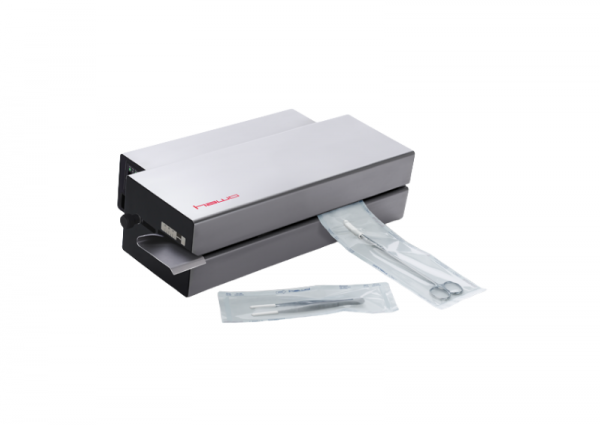

Rotary Sealer hm 780 DC/DC-V
Brand: Hawo | Function: Print, AutoFont, LED
The hm 780 DC-V rotary sealer accomplish the sealing of sealable pouches and reels (Sterile Barrier Systems SBS) in healthcare facilities. The sealing process is validatable in accordance with ISO 11607-2 as well as the requirements of the therefrom resulting specifications of the Guideline for the Validation of the Sealing Process. Due to a rotary speed of 10 m/min they are ideal for a high volume of instruments
Benefits
Benefits
- Fulfills the requirements of the guideline of the World Health Organisation (WHO) as well as the new guideline of the World Federation for Hospital Sterilisation Sciences (WFHSS)
- Validatable sealing process according to EN ISO 11607-2 and the international guidance ISO/TS 16775
- Integrated printer with FontMatic
- Interfaces for external tracking systems (e.g. ProDoc) and for most batch documentation systems
- Energy-saving thanks to permanently heated sealing system and automatic stand-by function to shut off the motor when not in use
- Also available in high gloss white
Functionality
Integrated Printer
Ergonomic
Documentation
Safe Packaging
The correct reprocessing process of medical devices consists of the steps of washing & disinfection, packaging and sterilisation. The instruments can only be called sterilised when they are packaged before the sterilisation. The single-use (!) packaging, made from laminated poly film and a porous material (Tyvek® or medical grade paper) is permeable for the sterilisation medium (e.g. steam, plasma, Formaldehyde FO or Ethylenoxide ETO), but not for bacteria or microorganisms. Only by following this reprocessing sequence and by using professional heat sealers to seal the instruments as well as professional packaging material can the sterility up to the point of use as well as the aseptic presentation of the instrument be guaranteed. Medical devices delivered in a sterile state should be packed to ensure that they remain sterile until the point of use. The validation of packaging processes is crucial to ensure that sterile barrier system integrity is attained and will remain so until opened by the users. The international packaging standard ISO 11607-2 as well as the Technical Specification draft ISO/DTS 16775 explain how packaging processes should be validated. The international packaging validation guideline gives guidance how to validate packaging processes. During the validation of the heat sealing process the optimum sealing temperature of the packaging materials used has to be evaluated and established. At this temperature, the process then has to deliver optimum seal seams that are strong enough and peelable. Professional heat sealing equipment for closing sealable pouches and reels (preformed sterile barrier systems) are essential for this. Hawo therefore offers sealing devices whose processes can be validated according to ISO 11607-2, the Technical Specification draft ISO/DTS 167751 and in harmony with the international packaging validation guideline. The models marked with ‘V’ feature an integrated function for regulating and monitoring process parameters – the ‘V’ is the key! Sealing devices from Hawo therefore guarantee efficient and reproducible packing, even for large volumes of instruments.
Specifications
| SEALING MATERIALS | hm 780 DC | hm 780 DC-V |
| Sealable paper pouches according to EN ISO 11607-1/EN 868-4 | x (suitable for gusseted materials) | x (suitable for gusseted materials) |
| Sealable pouches and reels according to EN ISO 11607-1/EN 868-5 made of film and paper according to EN 868-3 | x (suitable for gusseted materials) | x (suitable for gusseted materials) |
| Sealable pouches and reels according to ISO EN 11607-1/EN 868-5 made of film and uncoated materials made of polyolefine according to EN 868-9 (e.g. Tyvek®) | x | x |
| Sealable pouches and reels according to ISO 11606-1/EN 868-5 made of PP fleece or PP nonwoven | x (approval or test necessary) | x (approval or test necessary) |
| TECHNICAL DATA | ||
| Validatable process | x | |
| Microprocessor controlled | x | x |
| Display | 7 segment LED | 7 segment LED |
| Input keyboard | single keys | single keys |
| Automatic start of motor by photocell | x | x |
| Energy-saving function device with stand-by | 1 – 60 min | 1 – 60 min |
| Printer | 9-dot matrix, single lined | 9-dot matrix, single lined |
| Type size variable | x | x |
| RS 232 connection | x | x |
| Sealing temperature | max. 220 °C (428 °F) (monitored) | x max. 220 °C (428 °F) (monitored) |
| Contact pressure (fix) | 100 N ± 20% | 100 N ± 20% |
| Sealing speed (monitored) | x | |
| Switch-off tolerance | ± 5°C (DIN 58953-7) | ± 5°C (DIN 58953-7) |
| Seal distance from the material edge | 0 – 35 mm | 0 – 35 mm |
| Seal seam width 12 ± 1 mm | x (SealPeak) | x (SealPeak) |
| Mains connection | 115/230 V 50/60 Hz | 115/230 V 50/60 Hz |
| Power consumption | 390 W | 390 W |
| Dimensions W x D x H (incl. infeed section) | 560 x 255 x 145 mm | 560 x 255 x 145 mm |
| Weight | 15 kg | 15 kg |
| Housing | Stainless steel AISI 304 | Stainless steel AISI 304 |
Note: Specifications subject to change without prior notice.
Accessories
hm 1000 T Storage tray
hm 500 RT Roll conveyor
hm 621 S Cutting device with roll holder
hd 611 S Cutting device with roll holder, table/wall mounted unit
hm 500 TF Mobile tray, without baskets
hm 500 K Basket for hm 500 TF
hm 780 W Wall-mounted holder
hm 980 BR Barcode scanner 2D
Seal Seam Test
Seal Check Seal check sheets for paper pouches (250 pcs per pack)
Seal Check HDPE Seal check sheets for HDPE pouches (250 pcs per pack)
Ink Test PRO Dye penetration test sachet for paper pouches (30 packs per box)
Ink Test PRO HDPE Dye penetration test sachet for HDPE pouches (30 packs per box)
