Top Loading Bedpan Sanitizer

Brand: DDC Dolphin

Designed with high performance top loading technology, soiled utensils are automatically and thoroughly washed with high pressure nozzles using detergent, cold and hot water wash cycles with thermal disinfection to achieve thorough cleaning.

The Panamatic Optima 2 is a versatile bedpan washer with large capacity to cope with high demand wards or home care environment.  In an 8-minute cycle, the Optima 2 can process up to four reusable items at a time, including large bowls.

SKU: DPP0002 Category:



  • Reduces cross contamination of infectious materials and minimises the risk of ward outbreaks, keeping staff and patients safe.
  • Large capacity to suit high usage healthcare environments.
  • Incorporates the latest technological advances and able to achieve thermal disinfection levels.
  • Extremely thorough wash performance, eliminating 99.99% of known bacteria.



  • Large capacity suitable for high usage environments, can clean up to 2 bedpans and 2 urine bottles per cycle.
  • Rapid washing & disinfection cycle promoting eco-friendly environment and cost effective.
  • Hands-free open & close technology using a foot cup or infrared sensor to minimise cross infection and provide ease of use.
  • Top-loading for simple loading and emptying process.
  • Robust and long lasting high grade stainless steel casing, not easily corroded, easy to clean and maintain.
  • Antimicrobial surfaces minimises cross infection and reduces the possibility of microbial growth.
  • Auto scale management system suitable for soft and hard water to prevent blockages.

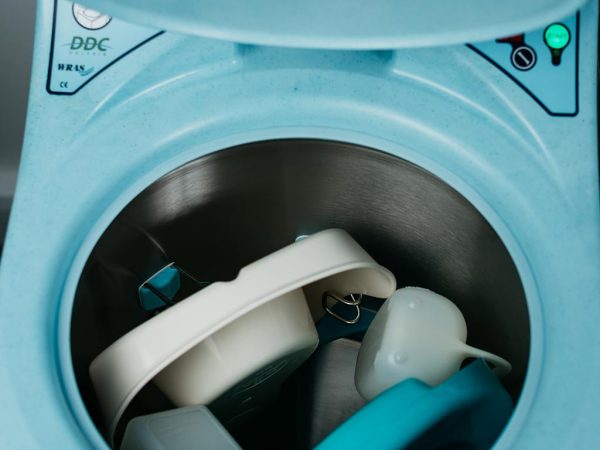

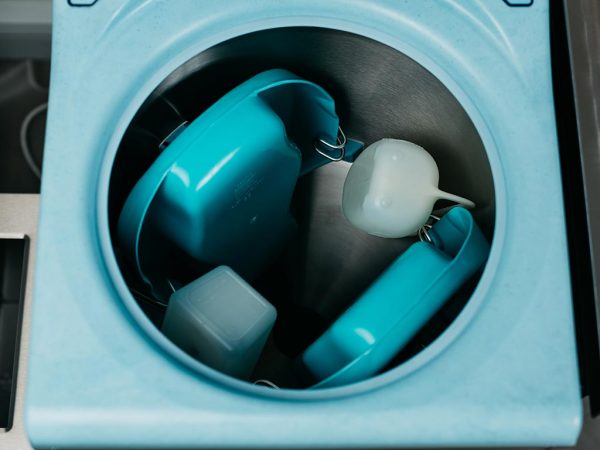

  • Unique multi-utensils racking design, extremely convenient with one rack to fit all standard bedpan sizes.
  • Rotating wash nozzles strategically sited spray jets ensuring superior wash performance.
  • Cold and hot wash cycles for an extra thorough cleaning process prior to thermal disinfection.
  • Optional programmable audio in your own language to ensure correct and proper use by staff.
  • Compact size to save space, making it suitable for all room types and sizes.



Capacity                                                              2 bedpans + 2 urine bottles

Operation cycle time                                        8 minutes

Decibel rating                                                    < 53.5dBA

Dimensions (w x d x h)                                     500 x 600 x 1042 mm

Weight                                                                 81kg



AC Voltage                                                          230V / 50Hz with dedicated 13A breaker

Circuit protection                                              30mA RCD, GFI, IEC60364 compliant

Rated power input                                            2.55kW

Electrical consumption per cycle                    0.335kWh

Steam generator power                                   2.5kW

Pump power                                                       0.75kW



Cold water connection                                      ¾” BSP male fitting required (washing machine hose)

Hot water connection                                        ¾” BSP male fitting required (washing machine hose)

Incoming water pressure                                  Cold water 0.5 to 6 bar

Water flow rate (Min)                                         10L per minute at 1 Bar

Water storage tank capacity                             Approximately 20L

Water consumption per cycle                           Approximately 42L

Discharge pipe                                                     Ø100mm

Connection                                                           Connects to building facilities’ Ø100mm soil pipe

Overflow connection                                           Ø22mm



Detergent                                                               EcoWash disinfectant

MircobeSafe antimicrobial surface                    Top lid cover, permanent

Disinfection bottle volume (external)                5L

Disinfection dosing (per cycle)                            30mL


Note: Specifications subject to change without prior notice.


Outline Dimensions of Top Loading Bedpan Sanitizer


Note: Specifications subject to change without prior notice.
