Electric Surgical Stretcher for EYE/ENT

Benefits

Benefits

• Four wheel brake and steer caster system operable from all four corners.
• Easy to clean thermoformed base cover with O2 tank holder and ample storage space.
• Dual pedestal support for maximum stability.
• Stainless steel patient surface.
• Low profile articulating head piece.
• Dual operating control knobs.
• Accessory wells at all four corners.
• Full perimeter bumper system.
• Stainless steel Retracto® siderails with rail caps.
• Comfort mattress and head pad.
• 3-Stage Telescoping I.V. pole permanently mounted at foot.
• Power controls :
  • Height adjustment and Trendelenburg positioning.
  • Backrest.
  • Knee flex.
• Patient/Staff Hand Held Control.
• Staff Control Panel with Power lock-outs (foot-end).
• Emergency Backrest Release lever to override electric/battery powered backrest.
• Battery back-up allows power functions when not plugged in.

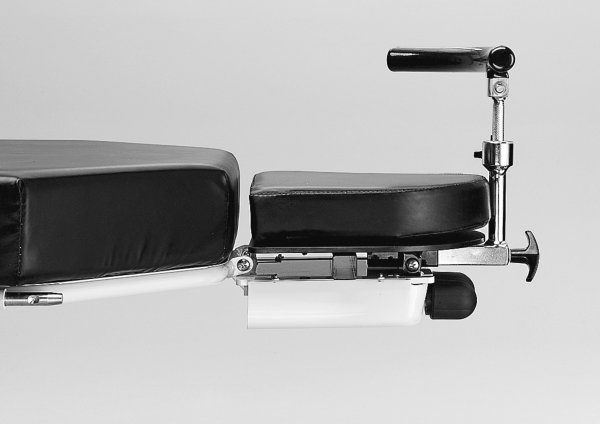

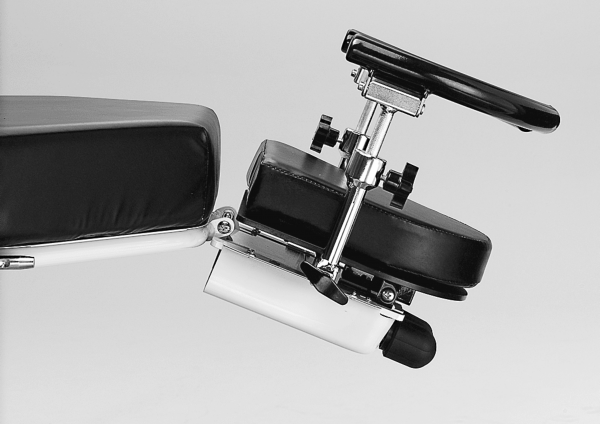

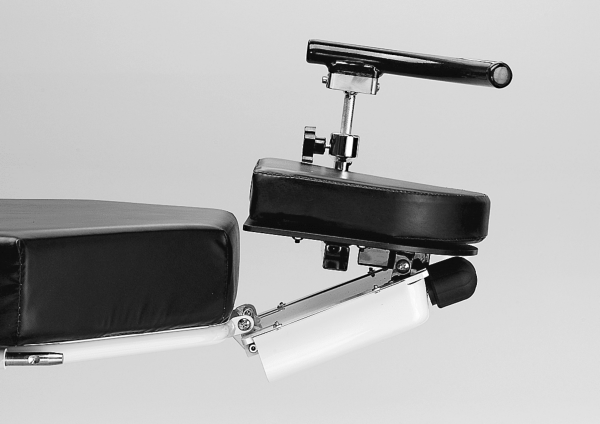

• The articulating head piece with dual operating control knobs allows infinite adjustability and precise microscopic movement of the head section.
• Low profile head piece design offers excellent site access for both superior (over brow) and lateral (side approach) procedures.
• Easy-to-use electric/battery powered or hydraulic/foot-end controlled backrest and leg flex operated controls are available for height adjustment, backrest, leg section, and Trendelenburg/reverse Trendelenburg.
• A wide variety of surgical accessories can be adapted to the unit to provide versatility.

Economical

• Pre-induction, transport, treatment, and recovery can be performed on the same unit to improve case turnaround and streamline patient handling.
• Reduces staff time and prevents staff injury involved in transferring patient during various phases of care.

Patient Outcome and Safety

• With the hand held control, patients can position themselves during recovery, which minimizes staff involvement and can help shorten recovery time.
• Improves the quality of care and reduces risk of patient injury by eliminating multiple patient transfers.

Versatility

• Articulating head piece with dual operating knobs allow infinite adjustability and precise microscopic movement of the head section.
• Designed with a low-profile head piece allowing site access for both superior (over brow) and lateral (side approach) procedures.
• Easy-to-use electric/battery powered or hydraulic/foot-end operated controlled backrest and leg flex operated controls are available for height adjustment, backrest, leg section, and Trendelenburg/Reverse Trendelenburg.

Specifications

General

Dimension                                              225 (L) x 76 (W) x 56-76 (H) cm

Patient Surface Area                             207 (L) x 64 (W) cm

Siderail                                                    121 (L) x 36 (H) cm

AC Voltage                                              230Vac / 50Hz rated 13A

Backrest                                                  0 to 80°

Knee Flex                                                0 to 60°

Trendelenburg                                      10°

Reverse Trendelenburg                       10°

Mattress/Head Pad Thickness            8cm

Caster Wheel                                         Ø20cm x 4 (Brake, Steer, Swivel)

Maximum Weight Capacity                 327kg

Standard Accessories

• Post-Op/Pre-Op head section
• 3 stage permanently mounted IV pole
• Built-in O2 tank holder (Base)
• Safety straps.

Note: Specifications subject to change without prior notice.

Brochure

Surgi Stretcher 5E8-578 Series.1215 (2pg)
